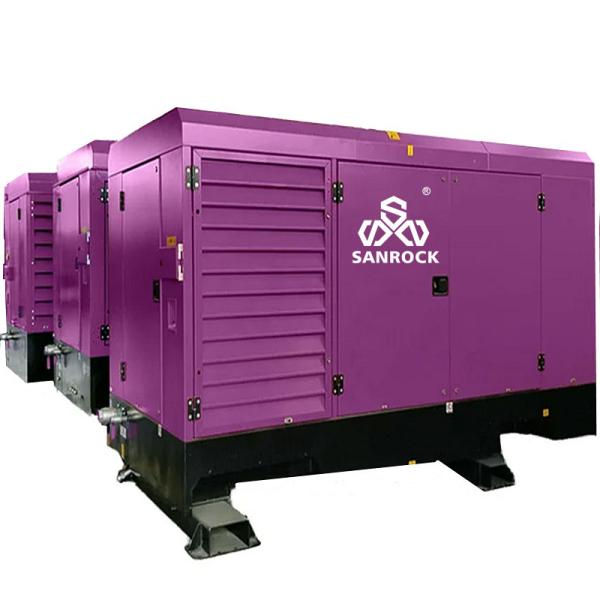

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

Name: Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor
Brand: SANROCK
Price: 1 USD

China Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor wholesale

Brand Name : SANROCK

Model Number : Customized

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 18-25 work days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Screw Air Compressor,Air Compressor Machine

Name : Diesel Screw Air Compressor

Power : 410KW

Power Source : Diesel

Pressure : 21-25bar/21-34bar

Air consumption : 31-29m²/min 36.5-32m²/min

Speed : 1600/1400rpm 1830/1400rpm

Fuel tank capacity : 700L

Lubricating oil capacity : 120L

Cooling method : Both Air/Water Cooling Available

Application : Mining Project,Coal,Ore

Type : Screw

Core components : PLC, Pressure vessel, Engine, motor, Pump, Bearing

configuration : Stationary

Dimension(l*w*h) : 4100*1800*2050mm

Weight : 5600KG

Contact Now

screw air compressor used with water well drilling rig
 This specialized rotary screw air compressor is engineered to deliver high-efficiency compressed air supply for water well drilling operations.
 Featuring robust twin-screw technology, to power down-the-hole hammers and rotary drilling systems. superior cooling and lubrication for extended duty cycles in harsh drilling environments.
 Integrated with vibration-resistant components and heavy-duty filtration systems, this compressor maintains high performance under dust and high-temperature conditions.
 Automatic load/unload controls and energy-saving VFD options enhance fuel efficiency for mobile drilling rig configurations. With protection rating and corrosion-resistant coatings, it meets rigorous drilling industry standards for reliability in borewell construction and geothermal drilling applications.

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

Products Description

Brand Name:Sanrock
Product name: screw air compressor

Compressor	Pressure (bar)	21-25 21-34
	Air consumption (m²/min)	31-29 36.5-32
	Lubricating oil capacity(L)	120
	Dual transformation	Dual
Engine	brand	Cummins
	Mode	QSZ 13-C550
	Power (kw)	410
	Max working/idle speed (rpm	1600/1400 1830/1400
	Cylinder No	6
	Total displacement(L)	13
	Emission standard	Stage Ⅲ
	Fuel tank capacity (L)	700
Unit	xhaust port specifications *Quant	G21&G3/41
	Wheel specifications *Quantity	Skid mounted
	Noise[Db(A)]	85±3
	Dimension (mm	4100x1800x2050
	Weight (kg)	5600

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

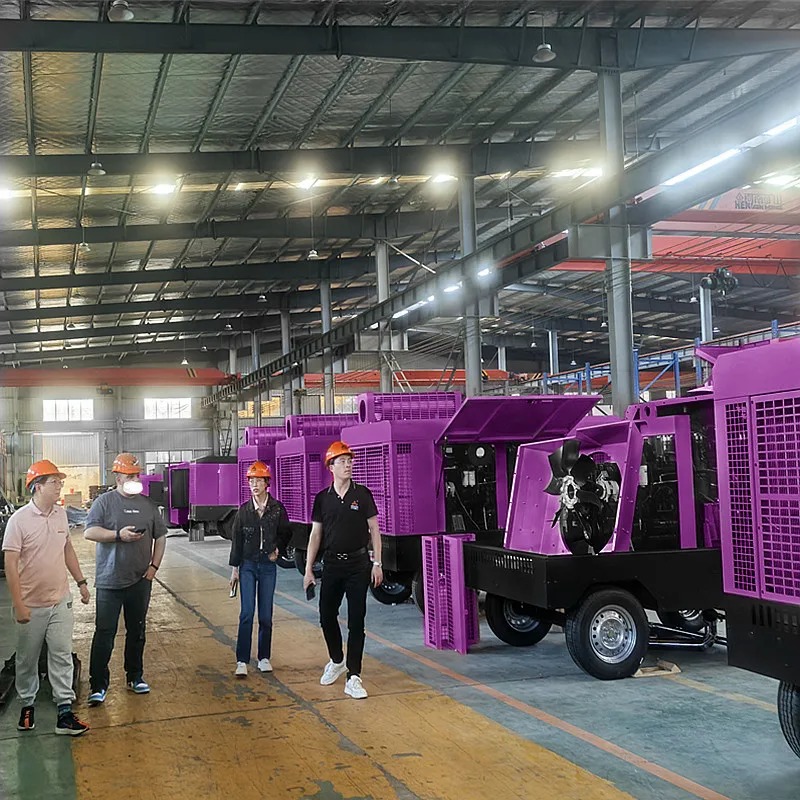

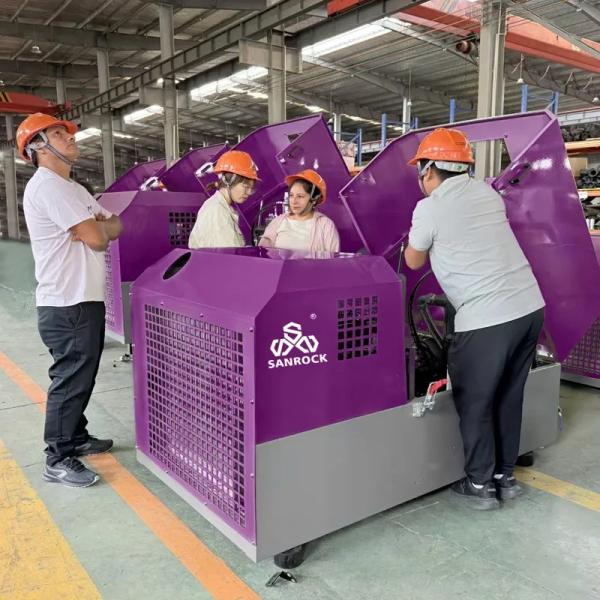

Company Profile

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
